Product Description

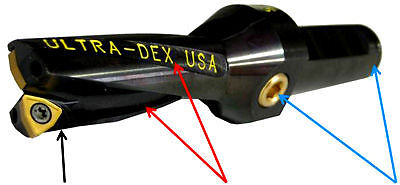

Steel 2xD Indexable Drill with a .937″ Diameter 1.935″ Drill Depth .750″ Shank Length to hold (2) WCMX 21.52 Coolant Thru
Product Specs
BD (Body Diameter) 1.22
DC (Cut Diameter) 0.937
DCONms (Connection Diameter) 0.75
L (Overall Length) 4.81
LF (Functional Length) 1.935
LPR (Protruding Length) 2.81
LS (Length of Shank) 2
LU (Usable Length) 1.874
