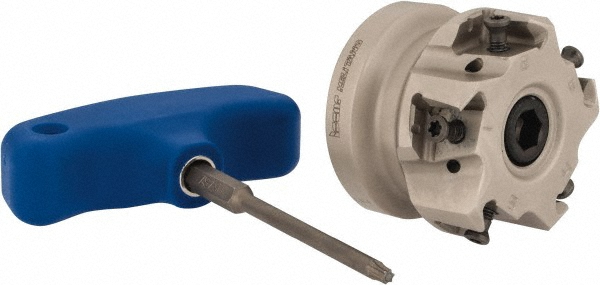

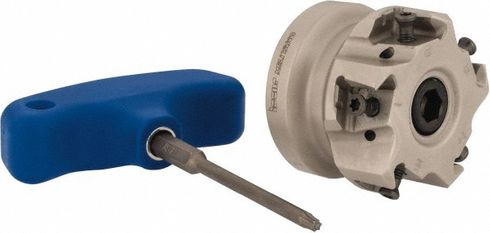

Iscar - 3105321 - Indexable Square-Shoulder Face Mills Cutting Diameter (Decimal Inch): 2.0000

Indexable Square-Shoulder Face Mills;

Cutting Diameter (Decimal Inch): 2.0000;

Maximum Depth of Cut (Decimal Inch): 0.4920;

Lead Angle ( ): 0/90; A

rbor Hole Diameter (Decimal Inch): 0.7500;

Overall Height (Decimal Inch): 1.5700;

Number of Cutter Inserts: 5

Cutting Diameter (Decimal Inch) 2.0000

Maximum Depth of Cut (Decimal Inch) 0.4920

Lead Angle ( ) 0/90

Arbor Hole Diameter (Decimal Inch) 0.7500

Overall Height (Decimal Inch) 1.5700

Number of Cutter Inserts 5

Insert Compatibility T490 LN.. 1306 Series Helitang Cutter Style T490 FLN-13

Cutting Direction Right Hand Insert Holding Method Screw Number of Flutes 5 Through Coolant (Yes/No) Yes Complete Insert Compatibility

T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS
