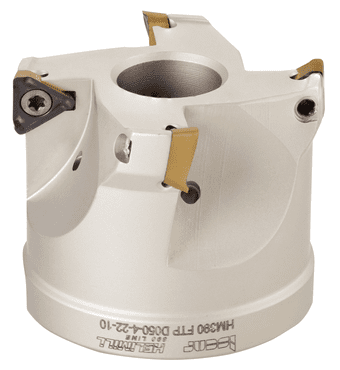

Product Description
◾The construction of the new inserts is stronger compared to current 2-edged inserts.
◾The new family ensures productive milling of true 90° shoulders, providing an improved cost per cutting edge for various milling applications.
◾The HM390 TDKT 1505PDR insert, .512" maximum D.O.C
◾Due to their advanced cutting geometries, the inserts reduce cutting forces and power consumption.
Technical Specifications Cutter Style Face mill
Trade Name Heli IQMill
Arbor Size 1.00
Uses Insert HM90 TDKT 1505PDR
Wrench BLD IP20/S7
Screw Style SR 10505427
Height 2.00
Model Number HM390 FTD D3.00-6-1.0-15
Weight 2.298
Type 90 Degree Face Mill
Number of Inserts 6
Handle SW6-T
Bore Diameter 1.00
Number of Flutes 6
Brand Name Iscar
Cutter Diameter 3.00
Depth of Cut .512
Mount A
