Kalamazoo S272V 2 Belt Grinder Vacuum Base

Kalamazoo S272V 2 Belt Grinder Vacuum Base

Item# S272V
Availability: Usually ships in 2-3 business days

Product Description

Kalamazoo S272V-110-1 Belt Grinders 2" x 72" Sander With Vacuum, 1HP, 1PH, 110V, 60Hz.

Kalamazoo Industries Inc, S272 2″ belt grinder is a 2″ x 72″ versatile belt grinder with 3″ and 1.5″ serrated contact wheels on either end of the platen. S272 has a powerful 1HP, 1PH or 3PH motor that allows for quick metal removal with minimal heat!

The S272 platen rotates 360 degrees to accommodate different shape parts for sanding. The S272 has an optional stand, vacuum base. The S272 allows for quick belt release, contact wheels, rotating platen and adjustable work rest.

The S272 belt grinder is great for aggressive grinding, beveling, deburring, descaling, polishing, finishing and tool sharpening.

This product has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.

Specifications: 1HP, 3450RPM motor, available in 1ph or 3ph. Manual switch. 5400 SFPM. 2″x72″ belt. 1-1/2″ and 3″ contact wheels standard on machine. 5″ diameter contact wheel optional. #CW5 8″x5″ tilting cast iron table with slot. Machine Dimensions (in./L x W x H): 28 x 20 x 45; Machine Weight (lbs.): 110.

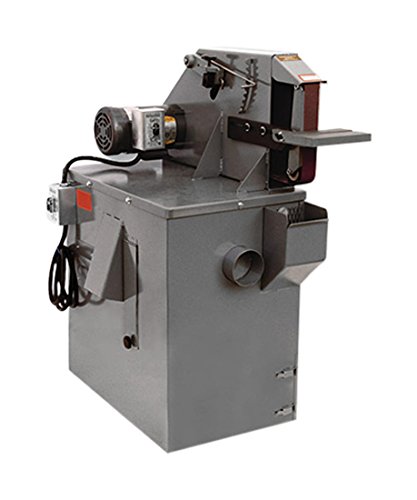

**S272V 2″ Belt Grinder Vacuum Base:

-Multi purpose sander for grinding, shaping, contouring, flat work, angles, snagging and roughing (see photo )

-Platen rotates 360 deg. for many different shapes and styles of sanding.

-Versatile for quick change contact wheel with various angles easy to change.

-1 HP , 1 ph. or 3 ph.

-Dimensions: L 27″ x W 18″ x H 40″

-SFPM 5400

-2″ x 72″ belt

-3″ and 1.5″ serrated contact wheels on rotating platen.

-Mounted on DCV-6 dust collector

-110 lbs.
