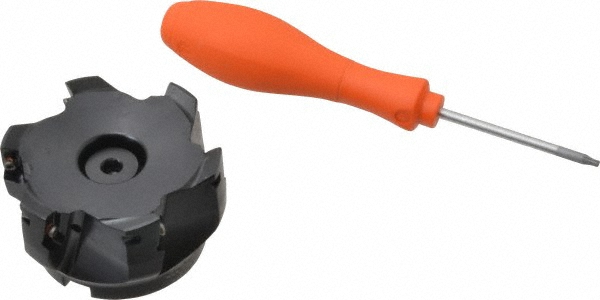

Kennametal - 2624277 - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 76.20 Cutting Diameter (Inch): 3

Kennametal - 2624277 - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 76.20 Cutting Diameter (Inch): 3
Item# 2624277
$674.74
Availability: In Stock

Product Description

Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 76.20; Cutting Diameter (Inch): 3; Cutting Diameter (Decimal Inch): 3.0000; Maximum Depth of Cut (mm): 14.22; Maximum Depth of Cut (Decimal Inch): 0.5600; Lead Angle ( ): 0/90 Cutting Diameter (mm) 76.20 Cutting Diameter (Inch) 3 Cutting Diameter (Decimal Inch) 3.0000 Maximum Depth of Cut (mm) 14.22 Maximum Depth of Cut (Decimal Inch) 0.5600 Lead Angle ( ) 0/90 Arbor Hole Diameter (mm) 25.40 Arbor Hole Diameter (Inch) 1 Arbor Hole Diameter (Decimal Inch) 1.0000 Overall Height (mm) 44.45 Overall Height (Inch) 1-3/4 Overall Height (Decimal Inch) 1.7500 Number of Cutter Inserts 6 Insert Compatibility EC14.., EP14.. Series Mill 1-14 Cutting Direction Right Hand Insert Holding Method Screw Maximum RPM 19600 Number of Flutes 6 Hub Diameter (mm) 55.56 Hub Diameter (Decimal Inch) 2.1874 Keyway Width (Decimal Inch) 0.3900 Maximum Body Diameter (Decimal Inch) 2.9460 Through Coolant (Yes/No) Yes Coolant Hole Diameter (Decimal Inch) 3.0000
