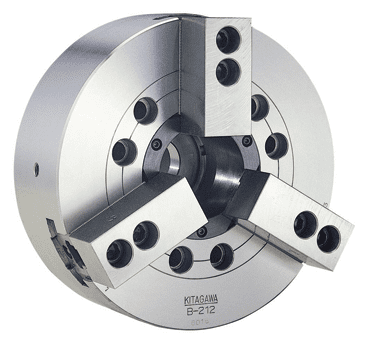

![KITAGAWA 8" 3 JAW THRU HOLE POWER LATHE CHUCK B208 KITAGAWA 8" 3 JAW THRU HOLE POWER LATHE CHUCK B208](https://s.turbifycdn.com/aah/yhst-46537691064911/kitagawa-8-3-jaw-thru-hole-power-lathe-chuck-b208-43.png)
Product Description
Technical Specifications
Net Weight (lbs) 49
Max. Speed (rpm) 5000
Max. Gripping Force (lbs) 19334
Through Hole Diameter 2.047
Chuck Diameter 8.268
Model Number B208
Description Type B
Large Thru-Hole
Strong Clamping Force
High Speed
Compact and Lightweight
High Accuracy and High Endurance
Lubrication nipple in each base jaw.
Master Jaw Serration 1.5mm x 60 degree
An Ajax Chuck and Jaw technician Welcomes the opportunity to help in selection of the proper Chuck and Jaws for your application and to quote Your Organization.
Ajax Sales & Service: 1 (800)543-5998
