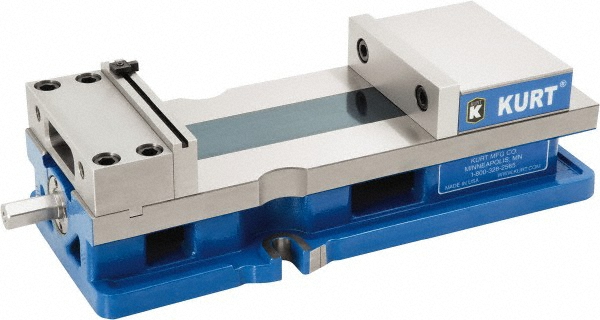

KURT HD691 6" Vise OPENS 9"

KURT HD691 6"  Vise OPENS 9"
Item# HD691
Regular price: $1,098.00
Sale price: $994.00
Availability: In Stock

Product Description

KURT HD691 6"  Vise OPENS 9"
KURT HD691 Vise



Features:

• Easier programming in the "Y" axis positive direction

•Reduces "reach-over" distance making part loading safer and easier

•A full 9" opening between jaws when using standard jaw plates

•Wider more stable stationary jaw equals less deflection

•Four bolt stationary jaw bolts from the top which reduces stress in the body so the vise stays flatter after assembly

•No need to remove the vise from the table to clean

•Narrower body allows for more vises in the work envelope

•Taller body design equals less deflection under clamping load

•Bolts and locates directly on standard grid plates: 40mm, 50mm or 2"

•"Pull-type" design reduces stress in the body which results in more accurate clamping

•Quick change movable jaw, the HD platform movable jaw allows for quick change and carvability to hold that odd shaped part

•GrooveLock® workstop included

•Uses sine keys for alignment

•Swivel base available, Part #D50-4-SA

•Body height matched ±0.0005"



Specs:

Vise Type Reverse

Jaw Width (Inch) 6 Jaw

Width (Decimal Inch) 6.0000

Jaw Opening Capacity (Inch) 9

Throat Depth (Decimal Inch) 1.7350

Overall Length (Inch) 18.3850

Base Width (Inch) 6

Jaw Height (Decimal Inch) 1.7350

Clamping Force (lb-ft) 12600.00

Overall Height (Decimal Inch) 4.8600

Weight 75 lbs
