Lathe Chuck Stop Set 15, 20, & 25mm Stops 25200

Lathe Chuck Stop Set 15, 20, & 25mm Stops 25200
Item# CS25200
$335.00
Availability: In Stock

Product Description

Magnetic Chuck Stop Set 15, 20, & 25mm Stops 25200



Magnetic Chuck Stop Set

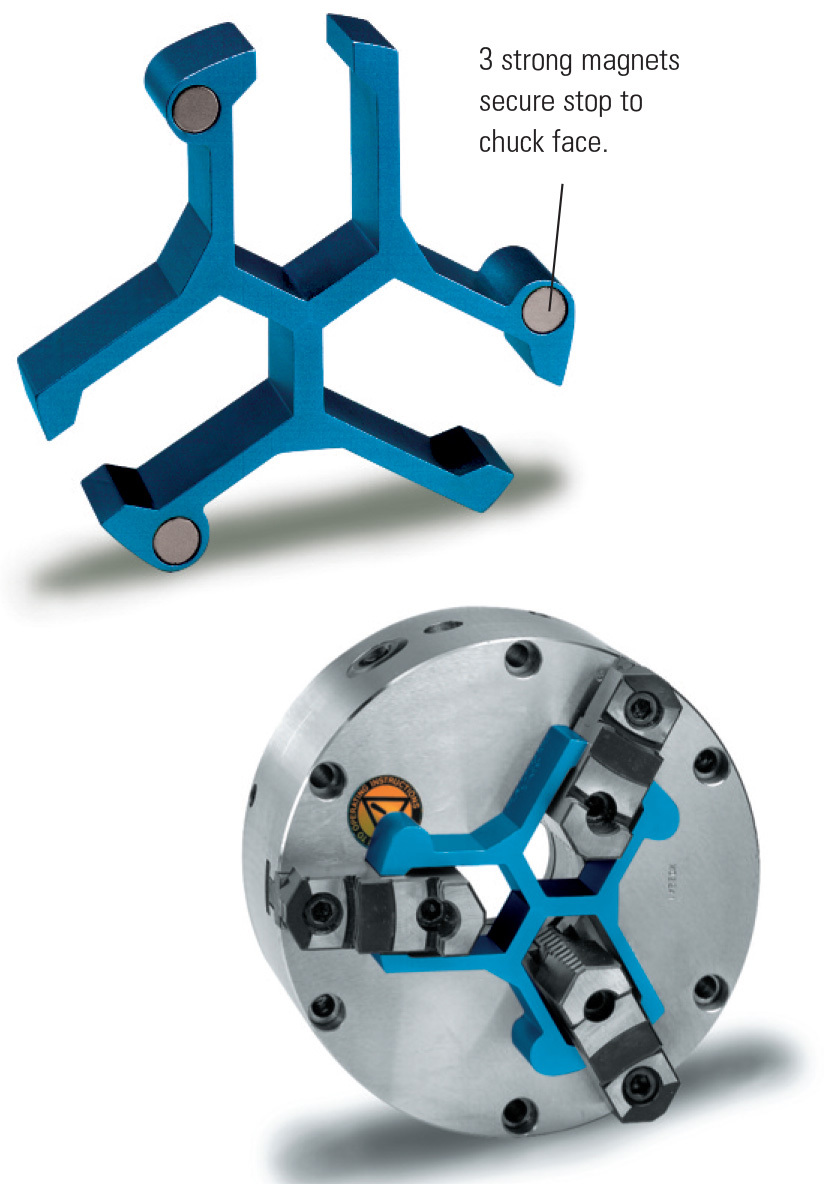

The Chuck Stop provides a simple, consistent method for locating short parts in a 3-jaw lathe chuck.

Captive, web-shaped design eliminates the danger of using spacers or parallels that could come loose and be thrown from a spinning chuck.

Three strong magnets further secure the stop to the chuck face.

Stop allows short parts to project past the chuck jaws, providing clearance for facing operations.

Setup time is greatly reduced — no need to bore soft jaws.

The Chuck Stop is very accurate —front and back locating surfaces are parallel within +/- 0.0004".

Accommodates chuck jaws up to 55mm (21/8") wide Anodized finish provides good wear-resistance.
