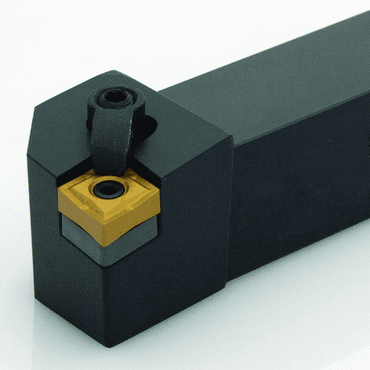

MCLNR16-4D 1" RH Shank CNMG Turning Toolholder

MCLNR16-4D 1" RH Shank CNMG Turning Toolholder
Item# MCLNR16-4D
$44.94
Availability: In Stock

Product Description

MCLNR16-4D 1" RH Shank CNMG Turning Toolholder
MCLNR16-4D 1" RH Shank CNMG Turning Toolholder

For turning, facing or contouring

Negative 5 lead angle

Uses CNMG, CNMA, CNMP, CNGA or CNMM 80 diamond inserts

Right hand



Specifications:

Clamp CL20

Clamp Screw XNS48

Head Length 1.250

IC 1/2

Lead Angle 5

Lock Pin NL46

ANSI Standard MCLNR16-4D

Overall Length 6.00

Right/Left Hand Right

Seat ICSN433

Seat Screw S46

Shank Size 1.000

Uses Insert Style CNM_43_



Optional Sapre Parts:



#ICSN433 For 1/2" IC - Shim Seat $8.25

#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $6.05

#CL20 - 1/4-28 Thread - Clamp $9.15

#XNS48 - 1/4-28 Thread - Screw $2.80

#S46 - 1/4-28 Thread - Shim Screw $2.90
