Product Description

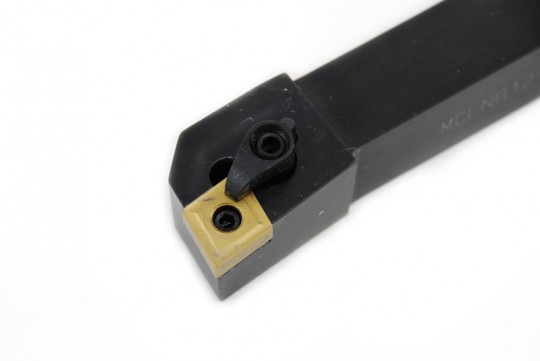

MCLNR 16-5D 1" RH Shank CNMG Tool Holder 404-1795
–Negative rake
–Negative 5 degree cutting edge angle
–Accepts these square insert: CNMA, CNMG, CNMM, CNMP
Details
Shank size 1
Overall length 6
Insert Style CNMA, CNMG, CNMM, CNMP
Insert Size 542, 543
cutting direction right hand
End & Side Cutting Angle -5
Insert Inscribed Circle 5/8
Model# MCLN R-16-5D
Shank Size Square: 1"
Overall Length: 6"
Insert I.C: 5/8", T: 1/4"
Related Products
SKU 404-4508 Clamp Screw XNS0829 $2.50
SKU 404-4516 Insert Locking Screw NL-0822 $3.50
SKU 424-1129 CNMG 542 DM YBC252 $8.50
SKU 404-4502 Finger Clamp CL-12 $3.95
SKU 404-4523 Shim C1604B $4.95
SKU 424-1130 CNMG 543 DM YBC252 $8.50
