Product Description

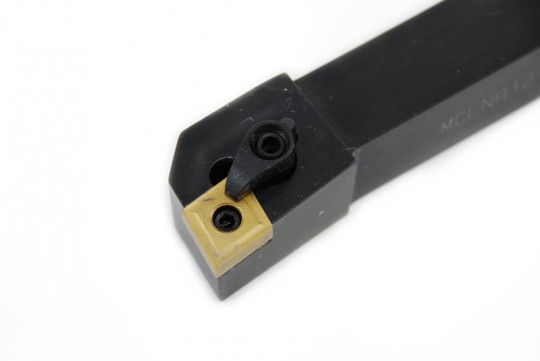

MCLNR 16-6D 1" RH Shank CNMG Turning Toolholder 404-1796
–Negative rake
–Negative 5 degree cutting edge angle
–Accepts these square insert: CNMA, CNMG, CNMM, CNMP
Details
Shank size 1
Overall length 6
Insert Style CNMA, CNMG, CNMM, CNMP
Insert Size 642, 643, 644
Cutting direction right hand
End & Side Cutting Angle -5
Insert Inscribed Circle 3/4
Shank Size Square: 1"
Overall Length: 6"
Insert I.C: 3/4", T: 1/4"
Related Products
SKU 404-4525 Shim C1904B $6.95
SKU 404-4517 Insert Locking Screw NL-0823 $3.50
SKU 404-4503 Finger Clamp CL-30 $3.95
SKU 404-4508 Clamp Screw XNS0829 $2.50
SKU 424-1131 CNMG 642 DM YBC252 $10.80
SKU 424-1132 CNMG 643 DM YBC252 $10.80
SKU 424-0223 CNMG 642 Tin $7.50
