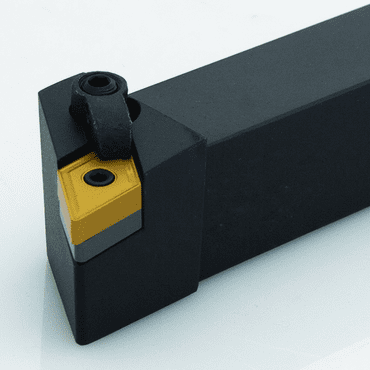

MDJNR16-4D 1" Shank DNMG Turning Toolholder

MDJNR16-4D 1" Shank DNMG Turning Toolholder
Item# MDJNR16-4d
$63.00
Availability: In Stock

Product Description

MDJNR16-4D 1" Shank DNMG Turning Toolholder
MDJNR16-4D 1" Shank DNMG Turning Toolholder



For turning and profiling

Negative 3 lead angle

Uses DNMG, DNMA, DNMP, DNGA or DNMM 55 diamond inserts



Specifications:

Clamp CL20

Clamp Screw XNS48

Head Length 1.250

IC 1/2

Lead Angle 3

Lock Pin NL46

ANSI Standard MDJNR16-4D

Overall Length 6.00

Right/Left Hand Right

Seat IDSN433

Seat Screw S46

Shank Size 1.000

Uses Insert Style DNM_43_



Optional Spare Prats:



#IDSN433 For 1/2" IC - Shim Seat $6.65

#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $6.05

#CL7 - 10-32 Thread - Clamp $8.10

#CL20 - 1/4-28 Thread - Clamp $9.15

#XNS36 - 10-32 Thread - Screw $2.80

#XNS48 - 1/4-28 Thread - Screw $2.80

#S46 - 1/4-28 Thread - Shim Screw $2.80
