Mitutoyo 0 - 12'' Measuring Range .001 Grad Dial Caliper 505-749

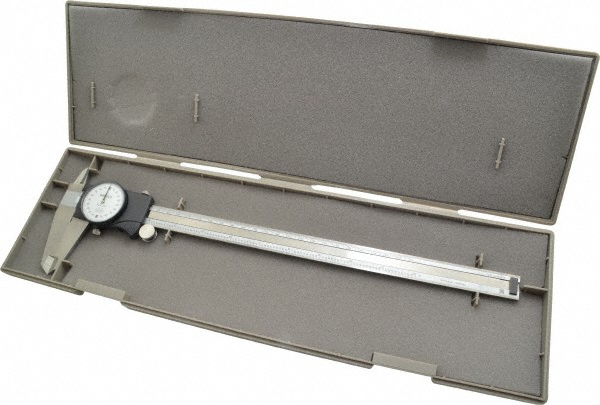

Mitutoyo 0 - 12'' Measuring Range (.001 Grad.) - Dial Caliper #505-720



Dial Calipers - Series 505

Series 505



Features

New designed dial movement for ultra smooth sliding and high shock protection.

Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance(except for 0-300mm and 0-12" model).

Can measure OD, ID, depth, and steps. Lock screw for dial bezel and for holding the slding jaw position.



Technical Specifications

Jaw Depth 2-1/2

Range Per Revolution .200

Graduation .001

Model Number 505-720

Measuring Range 0 - 12

White Face Dial Caliper

�Extra-rigid (3.4mm thick) main beam

�Extra-large dial face

�Hardened stainless steel

�4-Way measurements

�Easy zero point re-adjustment with adjuster supplied

�Supplied with fitted carrying case

�Improved durability, the sliding surface of the main blade is coated with TiN 4", 6", & 8" model
