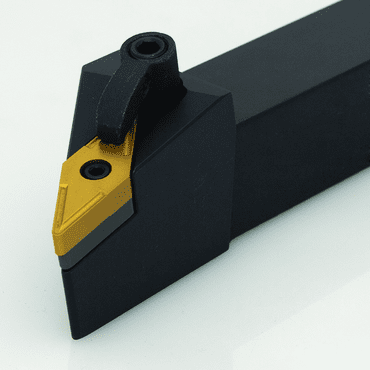

MVJNR12-3B 3/4 RH Shank VNMG Turning Toolholder

MVJNR12-3B 3/4 RH Shank VNMG Turning Toolholder
Item# MVJNR12-3B
$63.00
Availability: In Stock

Product Description

MVJNR12-3B 3/4 RH Shank VNMG Turning Toolholder
MVJNR12-3B 3/4 RH Shank VNMG Turning Toolholder



For turning and profiling

Negative 3° lead angle

Uses VNMA, VNMG, VNMP, VNGA, or VNMS inserts



Specifications:

Clamp CL30

Clamp Screw XNS510

Head Length 1.750

IC 3/8

Lead Angle 3°

Lock Pin NL34L

ANSI Standard MVJNR12-3B

Overall Length 4.50

Right/Left Hand Right

Seat IVSN322

Seat Screw S34

Shank Size .750

Uses Insert Style VNM_33_



Optional Spare Parts:



#IVSN322 For 3/8" IC - Shim Seat $7.6

#NL34L For 3/8" IC - 10-32 Thread - Lock Pin $6.05

#CL30 - 5/16-24 Thread - Clamp $11.60

#XNS510 - 5/16-24 Thread - Screw $2.80

#S34 - 10-32 Thread - Shim Screw $2.80
