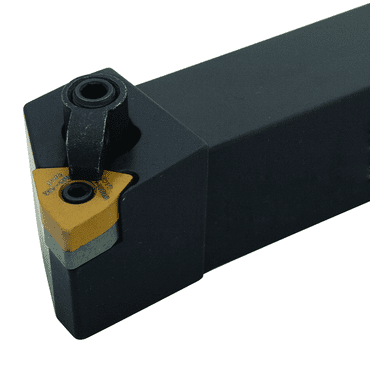

MWLR16-4D 1" RH Shank WNMG Tool Holder & 10 Inserts

MWLR16-4D 1" RH Shank  WNMG Tool Holder & 10 Inserts
Item# MWLR16-4DSET
$154.44
Availability: In Stock

Product Description

MWLR16-4D 1" RH Shank  WNMG Tool Holder & 10 Inserts
MWLR16-4D 1" RH Shank WNMG Tool Holder & 10 Inserts



Kit comes complete with (1) tool holder and (10) PVD TiAlN coated inserts

Inserts are grade 425 and work with steel, stainless steel, cast iron and hi-temp alloys

Technical Specifications

Uses Insert WNMG 432

Overall Length 6.00

Holder MWLNR16-4D

Shank Size 1.00



MWLNR-164D 1" RH Shank WNMG Turning Toolholder

Negative 5 lead angle

Uses WNMG, WNMP or WNMA inserts



Specifications:

Clamp CL9

Clamp Screw XNS59

Head Length 1.250

Lead Angle 0

Lock Pin NL46

ANSI Standard MWLNR16-4D

Overall Length 6.00

Right/Left Hand Right

Seat IWSN432

Seat Screw S46

Shank Size 1.000

Uses Insert Style WNM_43_



Optional Spare Parts:

#IWSN432 For 1/2" IC - Shim Seat $10.40

#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $5.05

#CL9 - 5/16-24 Thread - Clamp $8.25

#XNS59 - 5/16-24 Thread - Screw $2.80
