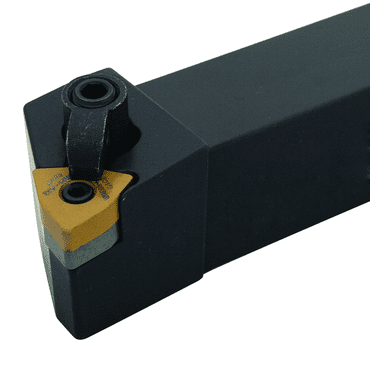

MWLNR16-4D 1" RH Shank WNMG Turning Toolholder

MWLNR16-4D 1" RH Shank WNMG Turning Toolholder
Item# MWLNR16-4D
$63.00
Availability: In Stock

Product Description

MWLNR16-4D 1" RH Shank WNMG Turning Toolholder
MWLNR16-4D 1" RH Shank WNMG Turning Toolholder

Negative 5 lead angle

Uses WNMG, WNMP or WNMA inserts



Specifications:

Clamp CL9

Clamp Screw XNS59

Head Length 1.250

Lead Angle 0

Lock Pin NL46

ANSI Standard MWLNR16-4D

Overall Length 6.00

Right/Left Hand Right

Seat IWSN432

Seat Screw S46

Shank Size 1.000

Uses Insert Style WNM_43_



Optional Spare Parts:

#IWSN432 For 1/2" IC - Shim Seat $10.40

#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $5.05

#CL9 - 5/16-24 Thread - Clamp $8.25

#XNS59 - 5/16-24 Thread - Screw $2.80
