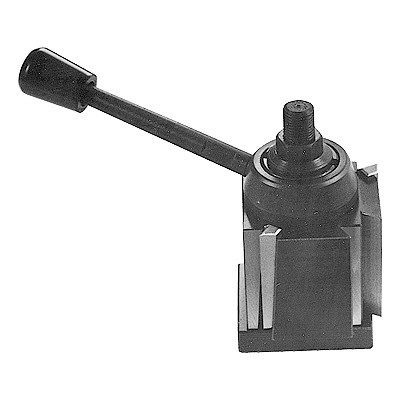

Product Description
Interchangeable with Aloris® and DORIAN® same series tool holders.
All working parts hardened and ground.
Completely sealed for maintenance-free operation.
Increases productivity of all lathe operations.
Precision design to assure repetitive accuracy.

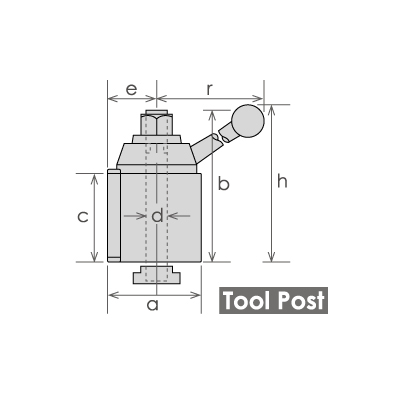

Series 0XA
A 1.10"
B 0.92"
D .257"
a 1-11/16
b 2-19/32
c 1-1/2
d 3/8
e 15/16
h 3-9/64
r 3-27/32
Swing Capacity up to 8"
All working parts hardened and ground.
Completely sealed for maintenance-free operation.
Increases productivity of all lathe operations.
Precision design to assure repetitive accuracy.
Series 0XA
A 1.10"
B 0.92"
D .257"
a 1-11/16
b 2-19/32
c 1-1/2
d 3/8
e 15/16
h 3-9/64
r 3-27/32
Swing Capacity up to 8"
