Product Description

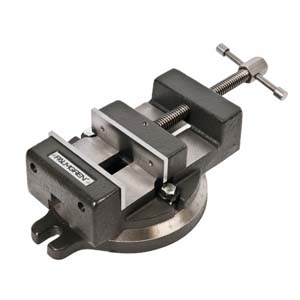

Palmgren 4-1/2" Low Profile Machine Vise with Swivel Base 18422
Features
U.S.A MADE
• A rugged vise designed for low clearance aplpications
• Base is graduated in 1 degree increments
• May alo be used on drill presses and grinders
• Made from fine cast iron
• 360 degree swivel base
• Base and bed parallel to 0.001"
Center of base open to hold work through body of vise
• For locating and mounting on machine table, the base has 7/16" keyway and two bolt slots
Product Specifications
Jaw deflection 0.002" @ 2000 lbs
Jaw Type Smooth
Lead Screw Type Acme
Jaw Opening 4"
Throat Depth 1-1/4"
Height 3-1/2"
Material Cast Iron
Style Vise With Swivel Base
Weight 25.00 Lbs
Lifetime Guarantee
