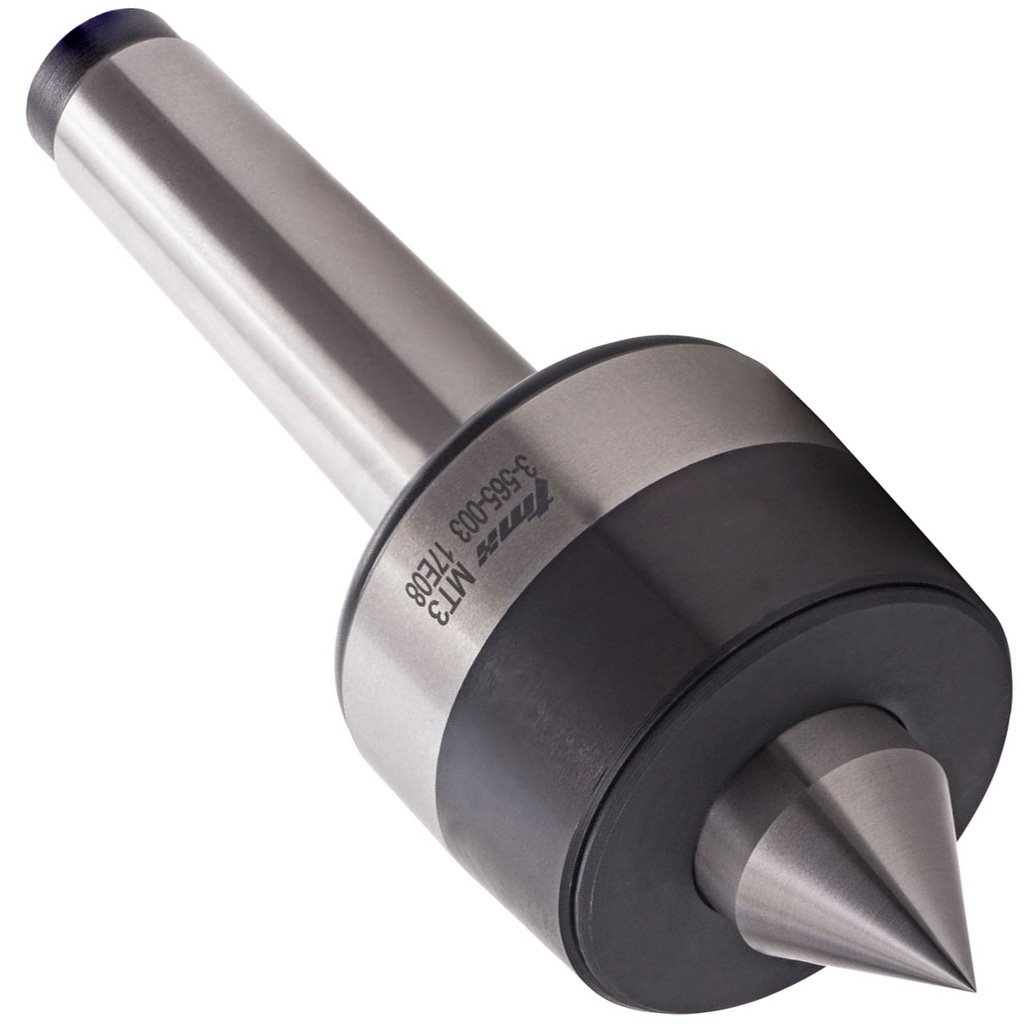

Rohm 3MT Revolving Tailstock Standard - Live Center

Rohm 3MT Revolving Tailstock Standard - Live Center
Item# 42776
$445.00
Availability: In Stock

Product Description

Revolving Tailstock Center

Type 604H body hardened and ground

Triple bearing method

High runout accuracy

Heavy duty

High speeds

Long life

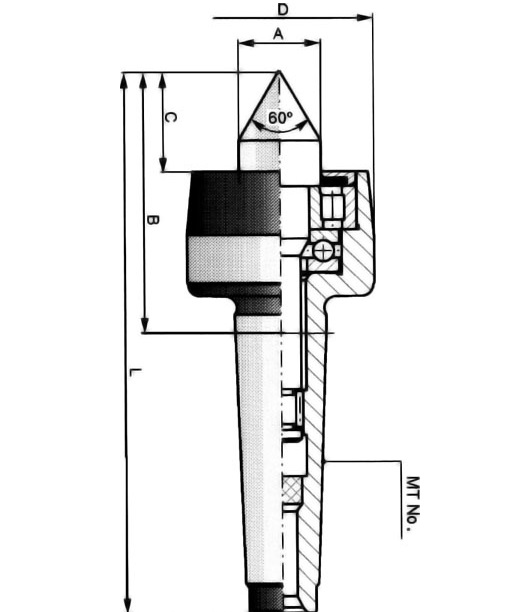

TECHNICAL SPECIFICATIONS

Accuracy .0002

Brand Name Rohm

Head Diameter 2.362

Head Length 3.130

Max. RPM 5000

Mount 3 MT

Point Diameter .984

Point Length 1.220

Point Style Standard

Radial Load 1100 lbs

Style Revolving Tailstock

Type Live Center
