Product Description

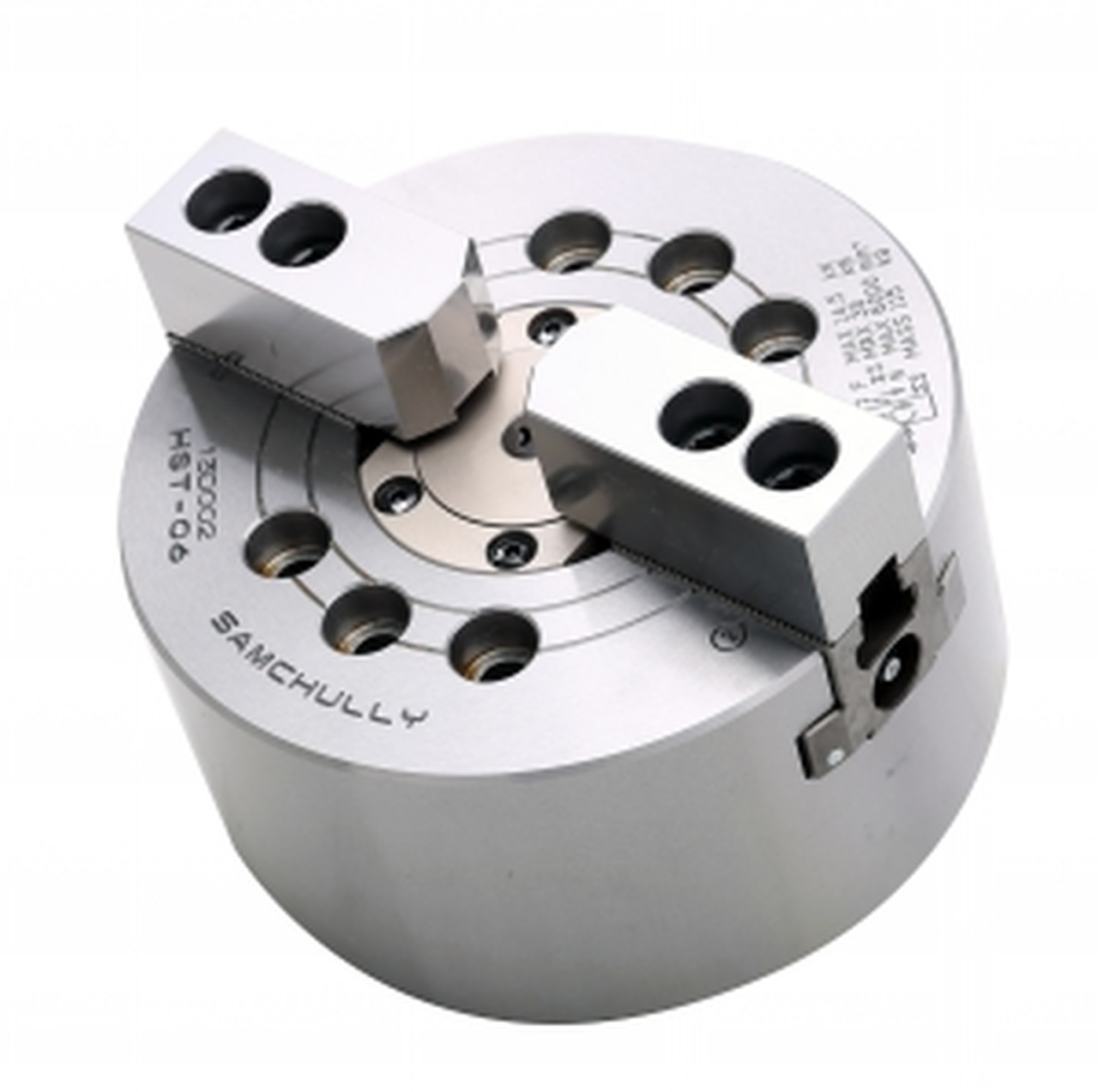

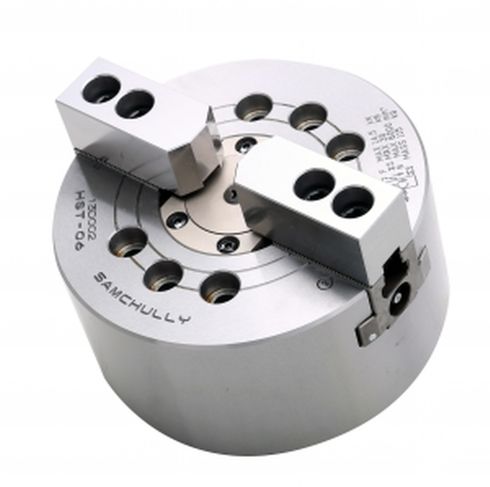

6" 2-jaw, high-speed
open-center plain back hydraulic chuck with blank draw nut
169mm O.D.; 46mm bore; 15 ~ 169mm clamping range
5.5mm jaw stroke on diameter
12mm plunger stroke
57KN maximum static gripping force
1.5x60° master jaws serration
6000 maximum rpm
open-center plain back hydraulic chuck with blank draw nut
169mm O.D.; 46mm bore; 15 ~ 169mm clamping range
5.5mm jaw stroke on diameter
12mm plunger stroke
57KN maximum static gripping force
1.5x60° master jaws serration
6000 maximum rpm
