STRAIGHT LINE PUSH PULL ACTION TOGGLE CLAMP 800 LBS CAPACITY 3900-0390

STRAIGHT LINE PUSH PULL ACTION TOGGLE CLAMP 800 LBS CAPACITY 3900-0390
Item# 3900-0390
$13.64
Availability: In Stock

Product Description

STRAIGHT LINE PUSH PULL ACTION TOGGLE CLAMP 800 LBS CAPACITY 3900-0390

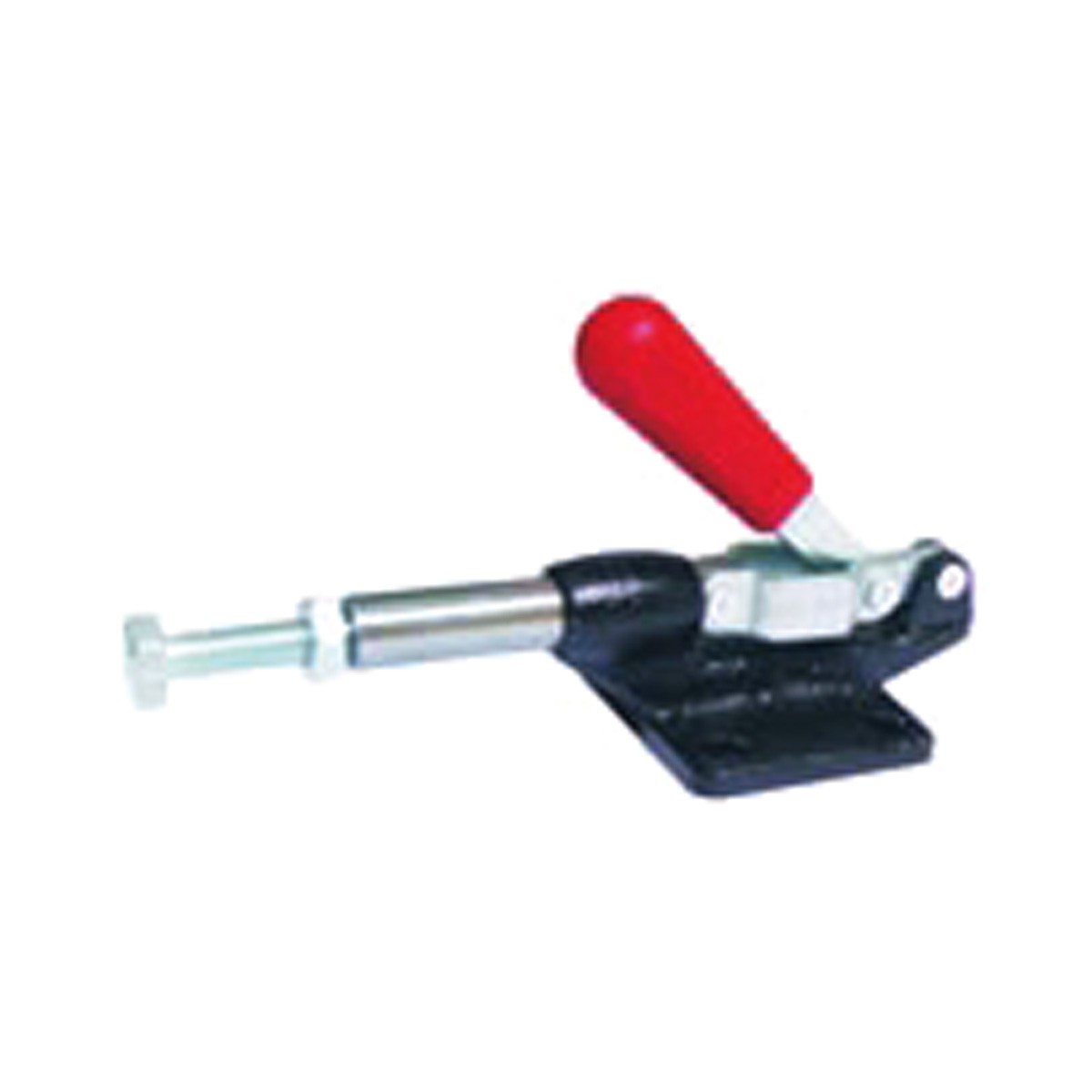

STRAIGHT LINE PUSH PULL ACTION TOGGLE CLAMP 45 DEG. With HANDLE & IRON BASE 800 LBS CAPACITY 3900-0390

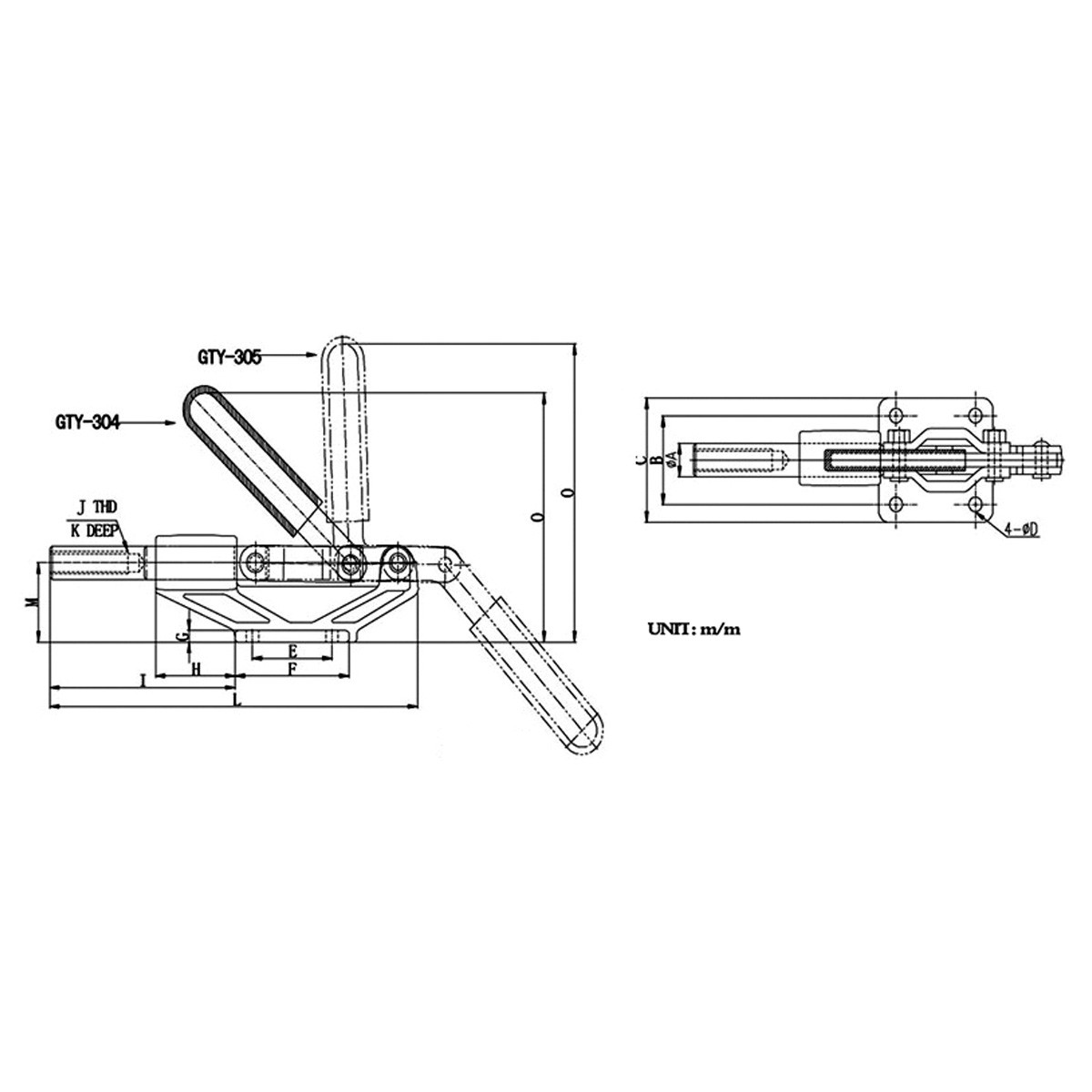

*CLICK ON THUMBNAIL TO UP-SIZE SCHEMATIC



FEATURES

Ajax 304-E

Ductile iron base for close fit machining, strength and durability.

All parts are die stamped from solid steel.

Red Hand grip for safety & convenience.

Double plated to avoid rust.

Carbon steel rivet for durability.



SPECIFICATIONS

A 16mm

B 41.1

C 57.2

D 8.3

E 41.1

F 58.8

G 4.8

H 31.8

I 81

J M10P=1.5

K 39.2

L 158.8

M 31.8

O 98.4

STROKE 42
