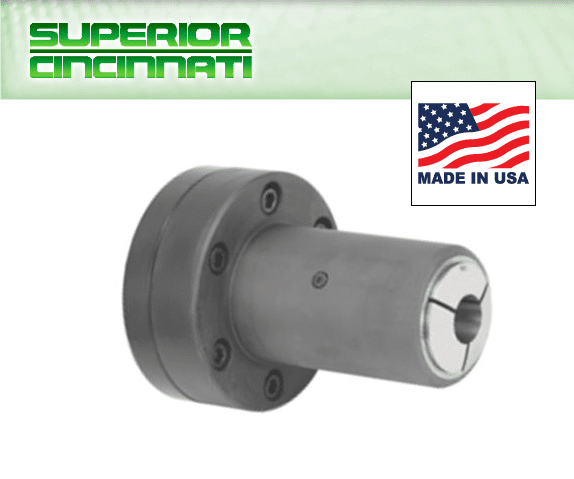

Superior Cincinnati 5C Thru-Hole A2-6 Pullback Collet Chuck

Superior Cincinnati 5C Thru-Hole A2-6 Pullback Collet Chuck
Item# CDC-5C-A06
Regular price: $1,825.00
Sale price: $1,659.00
Availability: Available for Order

Product Description



Repeatability within .0005" TIR as standard.

Pull-back clamping action.

Specifications Collet Number 5C

Maximum Round Bar Capacity 1.06 in

Maximum Hexagon Bar Capacity 0.90 in

Maximum Square Bar Capacity 0.75 in

Chuck Nose Diameter 2.75 in

Spindle Nose A05

Overall Length 4.19 in

Drawtube actuated.
