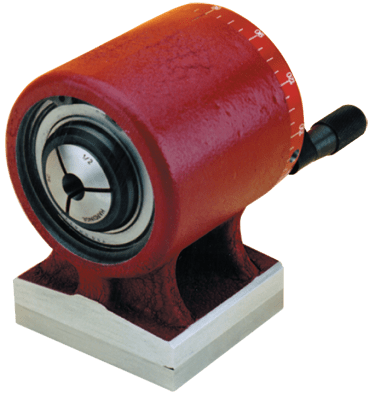

Product Description
Technical Specifications
Spindle TIR .0001
Center Height 3-5/8
Overall Height 5-1/2
Capacity 1-1/8
Weight 12 lbs
Type Collet Master
Collet Style 5C
Brand Name Suburban
Base 3-3/4 x 3-1/2
◾Uses all standard 5C Collets.
◾48 Index positions.
◾Two sealed, preloaded ball bearings in spindle.
◾Hardened and ground base is held square and parallel to spindle.
◾1-1/8" Through hole.
◾Drawbar and fitted case included.
◾Optional face plate and V-block for eccentric forms available.
