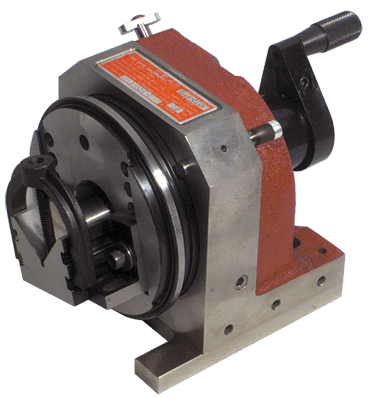

Product Description
Technical Specifications Spindle TIR .00005
Center Height 3
Overall Height 5-1/2
Capacity 1-1/4
Weight 39 lbs
Type Master Grind Collet Fixture
Collet Style 5C
Brand Name Suburban
Base 4 x 5
◾Twin-Dex combination 5-C collet and V-block in one fixture.
◾Horizontal or vertical V-block mounting.
◾72-Position index plate for hard index every five degrees.
◾Two heavy duty 4" diameter tapered roller bearings in spindle.
◾Extra large 1-5/8" V-block capacity.
◾Built-in sine bar for setting angles between hard index locations.
◾Square and parallel within .0002".
◾Sine set compatible.
◾Fitted wooden case included.
