Product Description

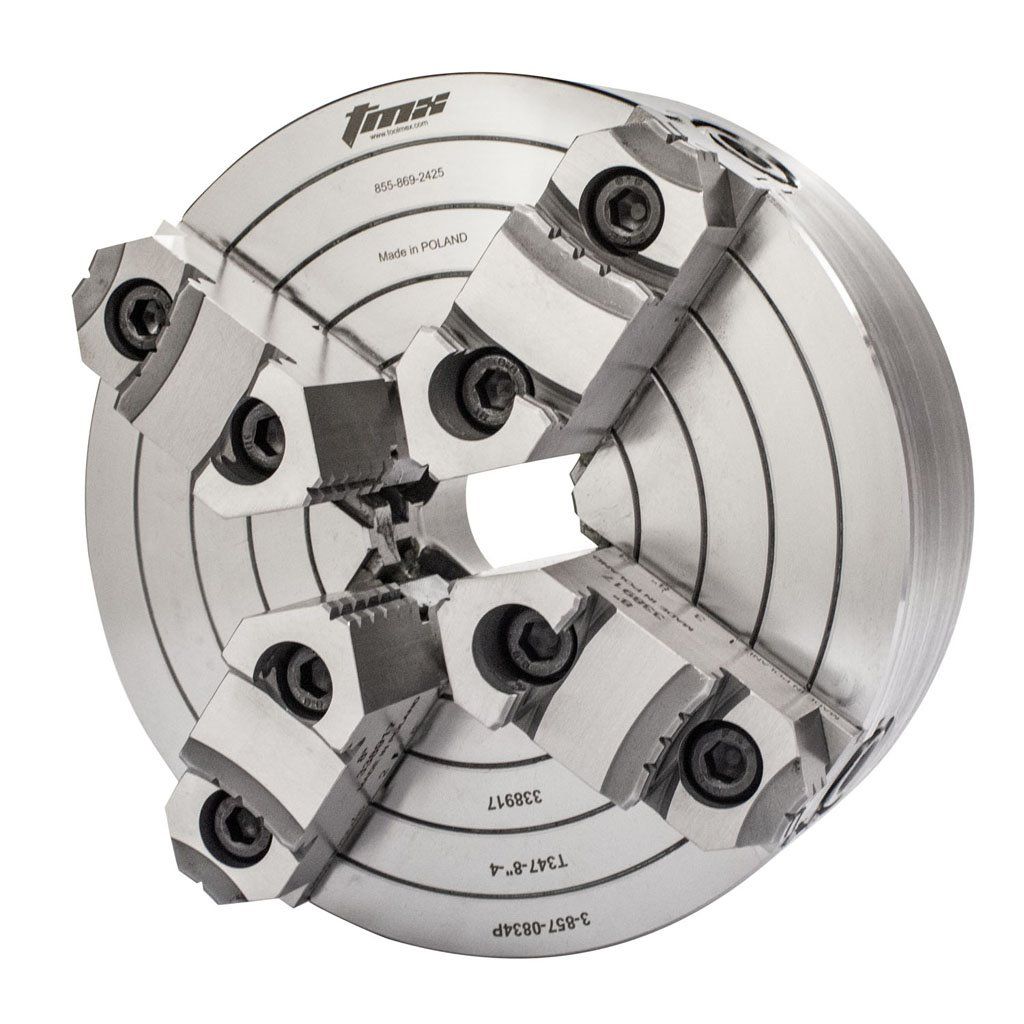

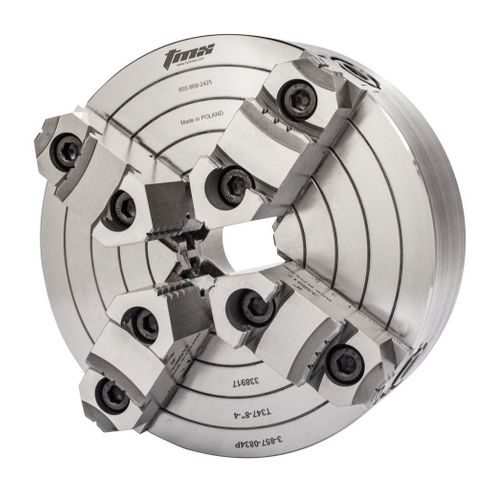

4-Jaw(2Pc) Independent Forged Steel Body Chuck 8" A2-6, 1.97" Hole, TMX by Toolmex MADE IN EUROPE
European Precision & Quality
A Type Direct Mount – No need for machining and no backplate required
All forged steel bodies at 28HRC for durability and rigidity
2pc Hard Reversible American Standard Tongue and Groove jaws are made of high quality alloy then hardened and ground
Operating screws are hardened and ground
Chucks 10” and above have T-Slots (Sizing Chart)
Made in Europe
STANDARD ACCESSORIES
Two Piece Reversible Jaws (Hard Top Jaws and Hard Master Jaws)
1 Chuck Wrench
1 Set of Chuck Mounting Bolts

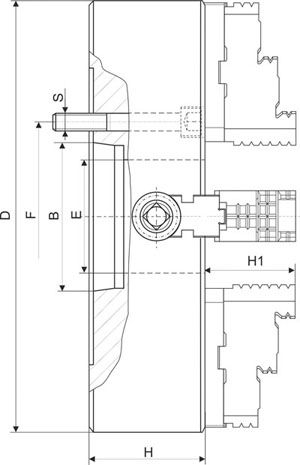

Diameter D in 7.874
Recess Diameter B in 4.188
Hole Diameter E in 1.9685
Bolt Circle Diameter F in 5.252
Body Height H in 2.8543
Jaw Height H1 in 1.7717
Bolt Thread Size S 4xM12
