Toolmex Slim Casing Live Center MT#6 Extended Spindle

Made In Poland

Morse Taper 6

Weight lb(kg) 18(8)

Maximum Speed RPM 3000

Maximum weight of workpiece lb(kg) 6600(3000)

T.I.R. in(mm) 0.0008 (0.02)

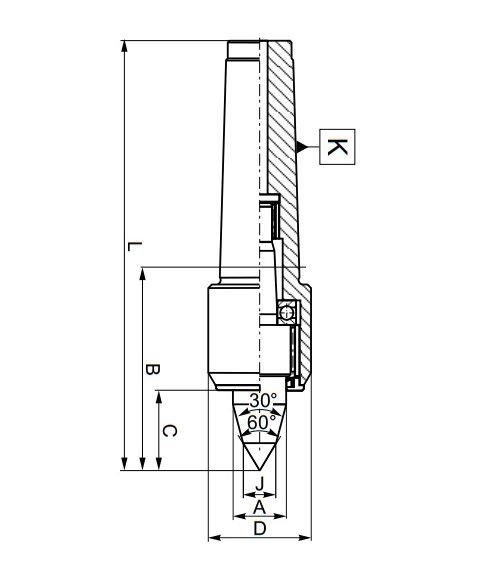

A in(mm) 1.654 (42)

B in(mm) 6.437 (163.5)

C in(mm) 2.795 (71)

D in(mm) 2.795 (71)

J in(mm) 0.709 (18)

L in(mm) 13.622 (346)
