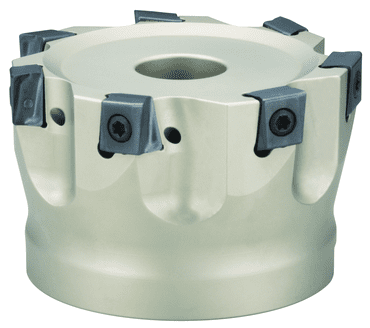

Product Description
◾Thicker body core provides tangential clamping and improves body rigidity
◾4-Edged insert offers an economical advantage, reducing tooling costs by 30%
◾Excellent cutting edge sharpness
Technical Specifications Uses Insert LMMU110708PNER-MJ
Torx Key Blade BT15S
Wrench T-15T
Coolant Screw TMBA-0.750H
Height 1.97
Model Number 6892297
Description TPM11R400U0150A08
Number of Inserts 8
Handle H-TB
Bore Diameter 1.50
Number of Flutes 8
Brand Name Tungaloy
Cutter Diameter 4.00
Lock Screw CSTB-3.5L110
Depth of Cut .381
