Product Description

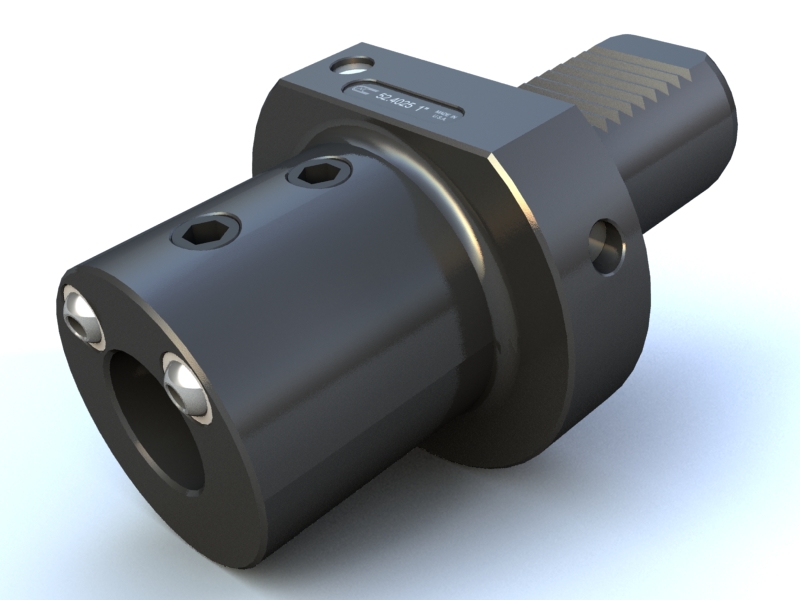

VDI 1" E2 50mm SH CNC Lathe Boring Bar Holder 52.5025
USA MADE
Specifications
Shank Diameter (mm) 50.00
Maximum Cutting Tool Size (Inch) 1
Projection (mm) 90.00
VDI Form Type E1 Through Coolant (Yes/No) Yes
Nose Thread Size 1/2-20
Shank Thread Size 5/8-11
Features
For Mazak, Emco-Maier, Hitachi, Seiki, Okuma, Hass, Daewoo, Hardinge.
Toolholders are precision ground, and Hardened.
Black-oxide finish for long lasting protection.
Material 8620 To DIN 69 880 specifications.
Ajax has a complete line of CNC VDI Toolholders, Tool Blocks and Live Tooling, Made to DIN 69880 standards and ISO 9001/2000 specifications.
Available VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.
Holds Standard Inch Size Tooling; Metric Available Upon Request.
VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.
Toolholders can be Preset. By Cam Operated Clamping System.
Toolholders can be manufactured to meet your specifications.
PRICE IS LIST WE WELCOME THE OPPORTUNITY TO QUOTE
Additional Sizes
VDI Shank Size Part Number
50mm 52. 5016
50mm 52. 5020
50mm 52. 5025
50mm 52. 5032
50mm 52. 5040
50mm 52. 5050
