Product Description

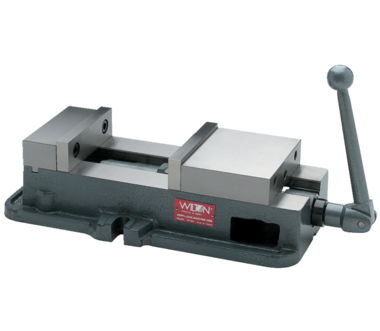

WILTON 6" Verti-Lock Milling Machine Vise 63186 JNA 86
•The ductile alloy vise body with flame-hardened bed provides solid work support, accuracy, and longevity
•The fixed jaw is rated at 85,000 PSI and the annealed, surface ground sliding jaw at 70,000 PSI
Verti-Lock Machine Vise 6” Jaw Width, 7-1/2 Jaw Opening 63186Wilton's Verti-Lock Machine Vise has a ductile alloy body with flame hardended bed to provide solid work support, accuracy and longevity.
The spindle fully enclosed to protect it from from milling elements and cut from special ally steel, hardened and ground.
•Totally enclosed vise screw is cut from special alloy steel, hardened and ground.
•The vise and optional swivel base have coolant troughs to channel fluid out of your way.
Technical Specifications
Overall Dimension (LxWxH) 19.7 x 10.7 x 6.7
Jaw Opening 7-1/2
Jaw Depth 1-3/4
Model Number 1275N
Jaw Width 6
Size 6
Weight 75.25 lbs
Type Verti-lock Mach. Vise
Optional Swival Base
Vise Height 6.7
Vise Length 19.7
Vise Body Width 10.7
